Draw APK - THCon 2021

• 14 solves
• 249 points

First steps

As the challenge creator tells me this app is “based on a Trojan Horse” and it is “not recommended to install it on a real smartphone”, even if there is actually “no malicious payload”, I am very reluctant at first to test the app, even in an emulator.

So, I start off with my favorite static analysis combination: DroidLysis and JEB. The results are disappointing, I spot several “suspicious” parts (use of com.andrognito for example) but they are False Positives.

Dexcalibur and Zip

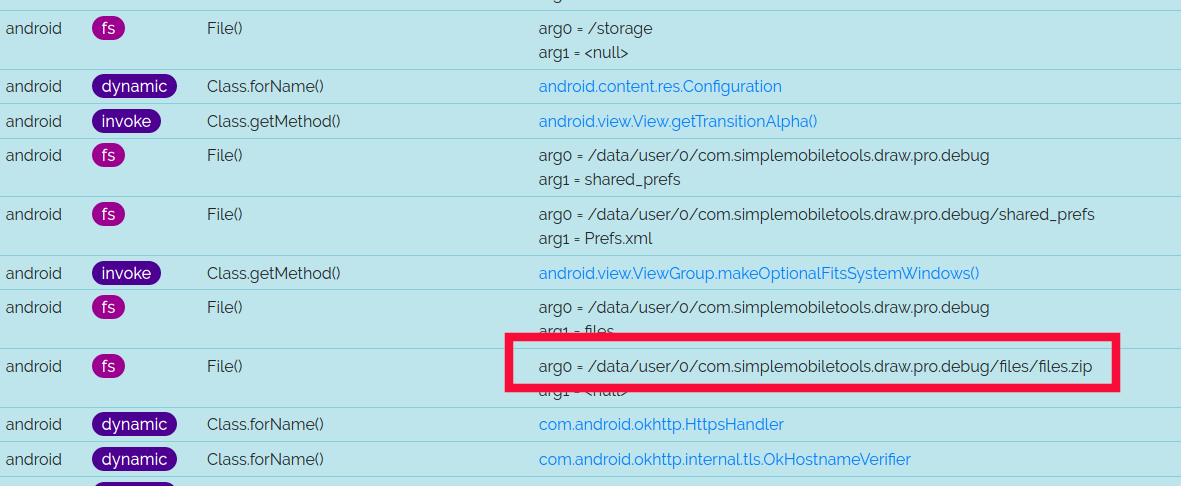

I decide therefore to run the app in an Android emulator, instrumented with Dexcalibur. I use the default set of hooks, and spawn the app. Nothing important happens until I click on the Settings menu. There, I notice the creation of a files.zip.

I find this suspicious: apart if configuration elements are zipped (but why? storing them in shared preferences seems easier), I see no reason why the app would need to create a Zip file.

I retrieve the zip file via ADB. It contains:

• ExtClass.enc: this file is obviously encrypted
• inf.enc: same, encrypted.
• theme.jpg: this file is a … PNG image. I don’t know why eog (Eye of Gnome) refuses to open it, but Gimp has no problem to open it.

It says we have been pwned. So, I am obviously in the right direction :)

Dexcalibur and Dex

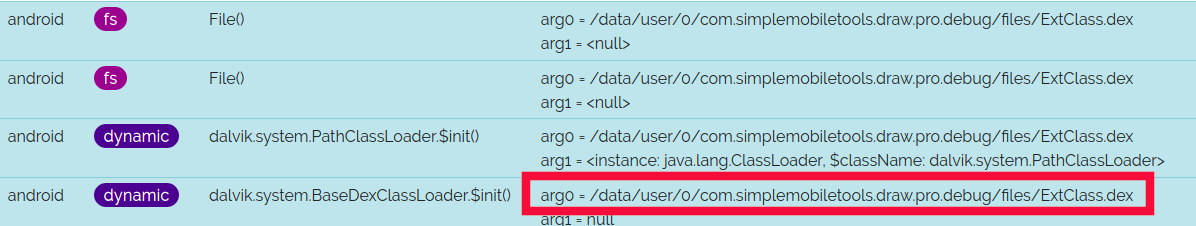

Then, I notice in Dexcalibur that a Dalvik Executable is loaded (highly suspicious):

I grab the DEX via ADB. It is a valid DEX file, that I immediately decompile. The code is simple, with a single class ExtClass, and methods such as isInfected() : exactly what I expect in a challenge.

ExtClass code

The image of the Zip is used by the method changeWallpaper(). It sets it as wallpaper.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

public void changeWallpaper(Context arg7) {
        WallpaperManager wpm = WallpaperManager.getInstance(arg7);
        Bitmap bitmap = BitmapFactory.decodeFile(this.filesDir + "/theme.jpg");
        try {
            wpm.setBitmap(bitmap);
        }
        catch(Exception e) {
            e.printStackTrace();
        }
    }

I am interested in method checkInf(), which decrypts inf.enc file. As this file is small (48 bytes), it could very well hold the encrypted flag.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

private String checkInf() {
        String path = this.filesDir + "/inf.enc";
        try {
            SecretKeySpec key = new SecretKeySpec(MessageDigest.getInstance("SHA-256").digest("y3t_@n0th3r_p@ssw0rd".getBytes(StandardCharsets.UTF_8)), "AES");
            IvParameterSpec iv = new IvParameterSpec("@n0th3r_f1x3d_1v".getBytes(StandardCharsets.UTF_8));
            Cipher cipher = Cipher.getInstance("AES_256/CBC/PKCS7Padding");
            cipher.init(2, key, iv);
            return new String(cipher.doFinal(Files.readAllBytes(Paths.get(path, new String[0]))));
        }
        catch(Exception e) {
            e.printStackTrace();
            return null;
        }
    }

I write the matching standalone Java code, but when I run it, it fails with no available provider for AES_256/CBC/PKCS7Padding.

How to lose time, silly

At this point thinking that if my computer does not have this provider, for sure Android phones and emulators have it, so I am going to hook the decryption method doFinal and display the decrypted text.

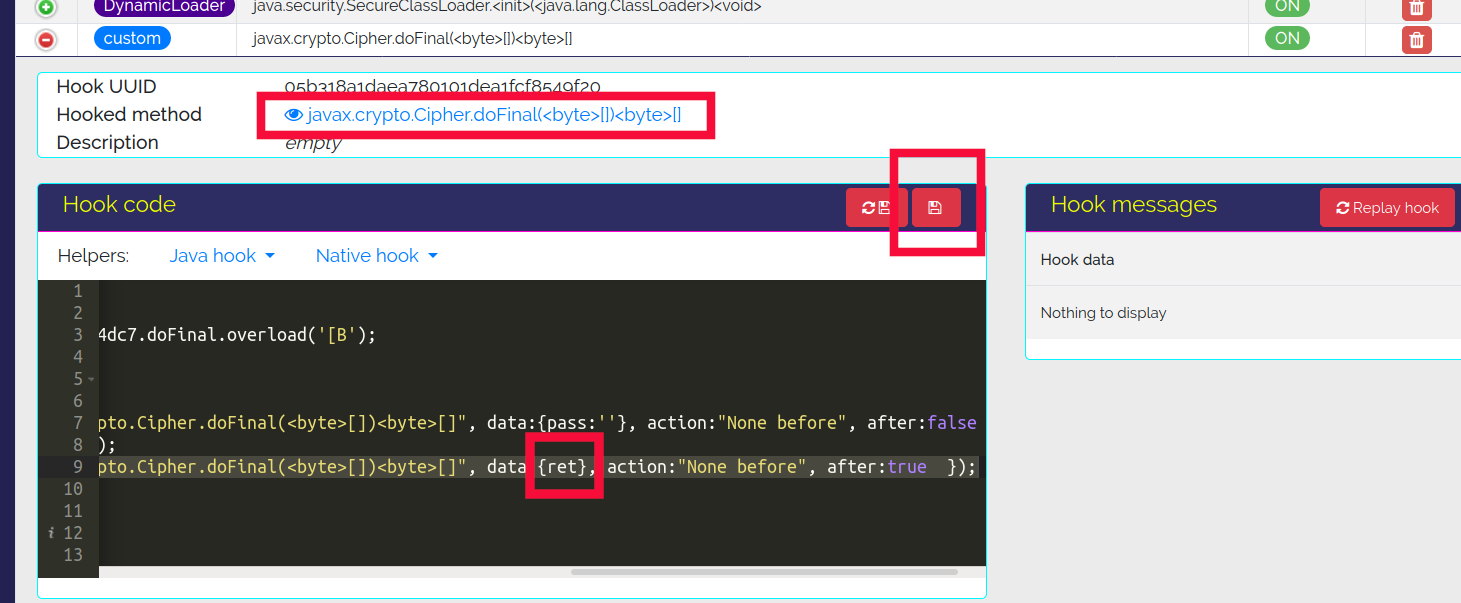

I hook doFinal and ensure that it displays the decrypted result (ret).

Then, I spawn the malware (note each time, I have to uninstall it and re-install it, to run it clean):

I considered hooking directly checkInf(), except I can’t with Dexcalibur because it is from dynamically loaded code and Dexcalibur does not find it. It is possible to write a Frida hook instead (without using Dexcalibur), but I’m lazy and don’t do it.

So, I get the result of the decrypted text and re-build the file… except this is useless, because those bytes are not from inf.enc but the decrypted value of ExtClass.enc !

And unfortunately, I register no other call to doFinal() for inf.enc… Dead end.

Back on track

I consider my Java decryption code and search on Internet why it does not find a provider for this algorithm and where I can find one.

I bump into this page which says that PKCS7 padding is not supported by Java, only PKCS5 (naming issue see the stackoverflow page). So, I simply change PKCS7 padding to PKCS5 in my code.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

import java.io.*;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.security.MessageDigest;
import javax.crypto.Cipher;
import javax.crypto.spec.IvParameterSpec;
import javax.crypto.spec.SecretKeySpec;

public class Decrypt {
    public static String path = "./inf.enc";

    public static void main(String args[]) {
        try {
                SecretKeySpec key = new SecretKeySpec(MessageDigest.getInstance("SHA-256").digest("y3t_@n0th3r_p@ssw0rd".getBytes(Standa
rdCharsets.UTF_8)), "AES");
                IvParameterSpec iv = new IvParameterSpec("@n0th3r_f1x3d_1v".getBytes(StandardCharsets.UTF_8));
                Cipher cipher = Cipher.getInstance("AES/CBC/PKCS5Padding");
                cipher.init(2, key, iv);
                System.out.println("Solution: "+ new String(cipher.doFinal(Files.readAllBytes(Paths.get(path, new String[0])))));
        }
        catch(Exception exp) {
            System.out.println("Exception: "+exp.getMessage());
        }
    }
}

Solution

Bingo.

1
2

java Decrypt
Solution: THCon21{Dyn@m1c_c0d3_l0@d1ng_1s_$c@ry}

How does it work?

When the end-user selects Settings, this starts SettingsActivity. At some point, this calls method invoke on the SettingsActivity. This calls a method named executePayload.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

 private final void executePayload() {
        ObjectRef classname = new ObjectRef();
        classname.element = "com.example.extlib.ExtClass";
        ObjectRef thedex = new ObjectRef();
        StringBuilder v3 = new StringBuilder();
        File v4 = this.getFilesDir();
        Intrinsics.checkNotNullExpressionValue(v4, "filesDir");
        thedex.element = v3.append(v4.getAbsolutePath()).append("/").append("ExtClass.dex").toString();
        if((this.loadServerFiles()) && (this.integrityVerified(((String)thedex.element)))) {
            BuildersKt.runBlocking$default(null, ((Function2)new SettingsActivity.executePayload.1(this, thedex, classname, null)), 1, null);
        }
    }

This method:

1. Retrieves external files via loadServerFiles(). This downloads files.zip from a Google Drive. Then, it unzips the file and decrypts the DEX. Note the secret key and IV are different from the one used to decrypt inf.enc.
2. Checks the integrity of the external DEX. This consists in checking the SHA256 hash against the expected one.
3. Calls executePayload.1. This will load the DEX (with PathClassLoader, something I did not detect with DroidLysis at the time of the challenge), call initLib from the dynamic class, check if the smartphone is infected with isInfected and finally modify the wallpaper.
